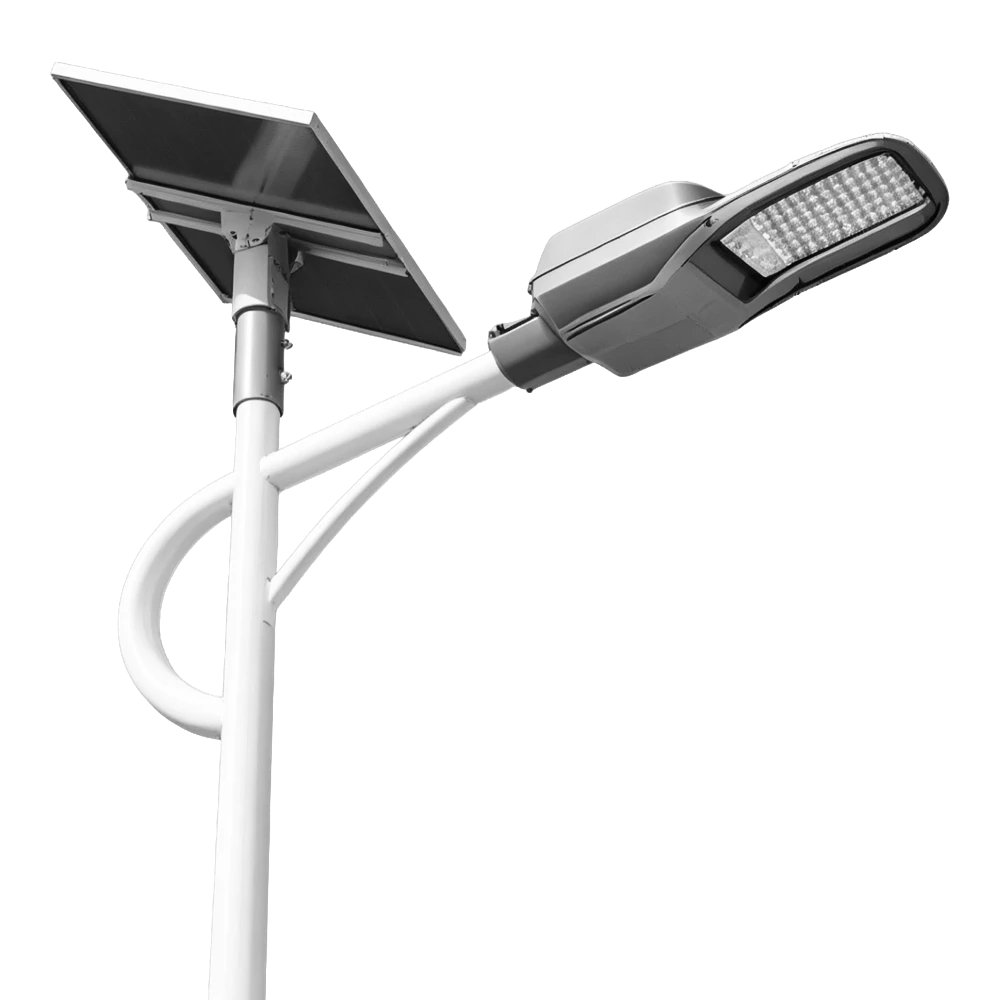

Luyi Split Solar Street Lights for Roads, Highways & Outdoor Infrastructure
Designed for municipal roads, highways, industrial parks, parking lots, and rural infrastructure projects.
Advanced Integrated Solar LED Road Lighting System with Smart Energy Management
The Luyi split solar street light is designed for municipal roads, highways, industrial parks, rural infrastructure, parking lots, and commercial outdoor lighting projects. Combining high-efficiency LED chips, monocrystalline solar panels, LiFePO₄ battery technology, and an intelligent APMS control system, the Luyi series delivers stable, energy-saving, and maintenance-friendly outdoor illumination for global infrastructure projects.
As a professional solar street light manufacturer, Queneng provides OEM and ODM customization services for engineering contractors, government projects, distributors, and commercial lighting companies worldwide.
High Efficiency Integrated Solar LED Lighting System
Core Advantages of Luyi Solar Street Light

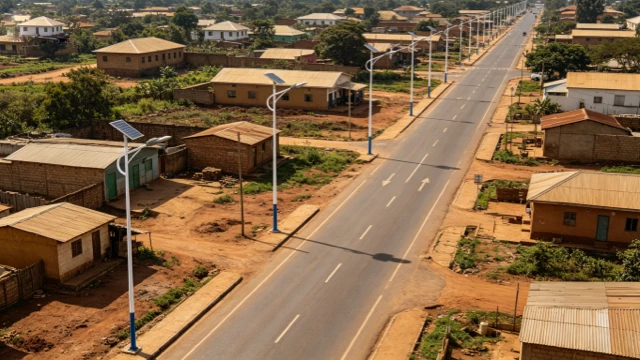

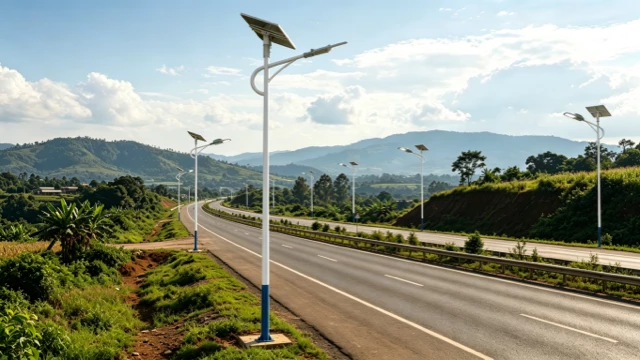

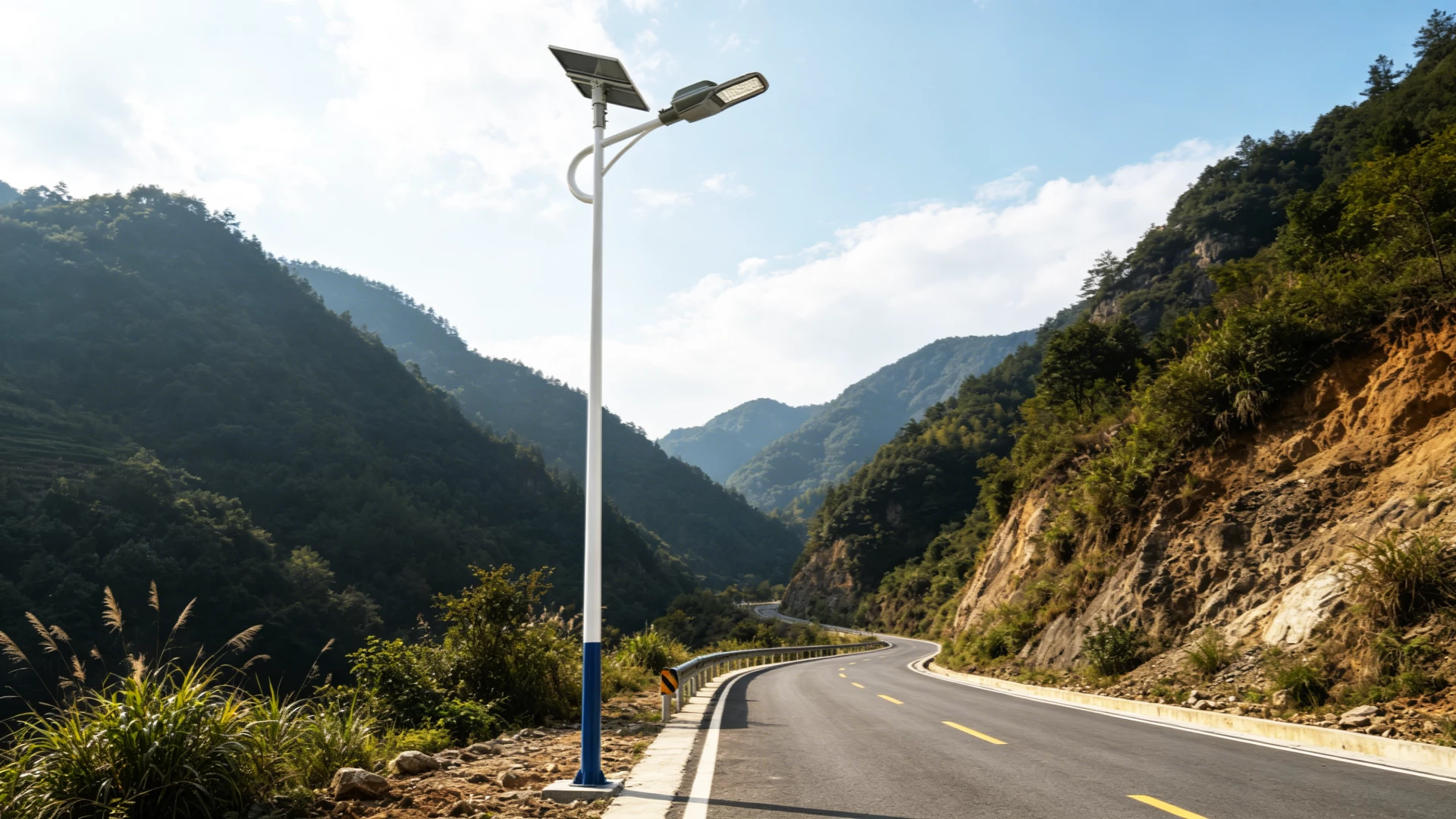

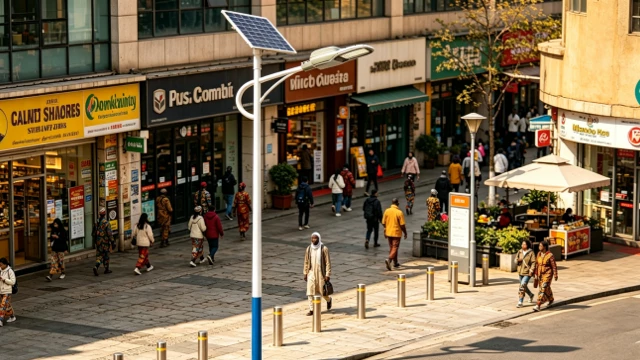

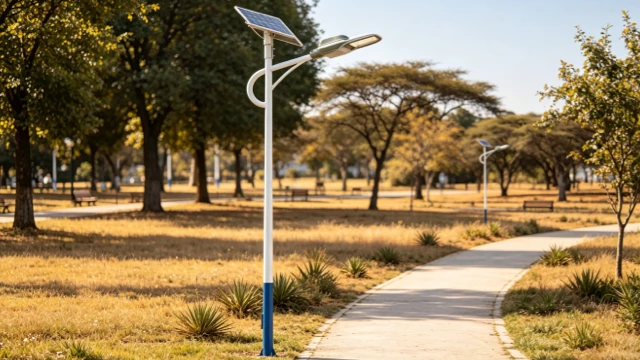

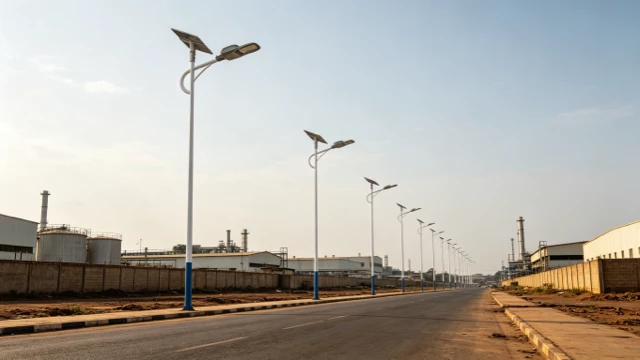

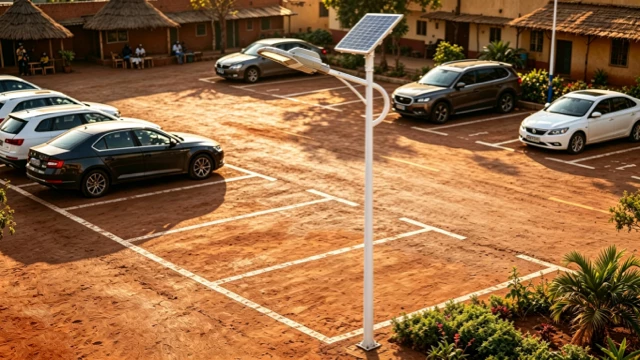

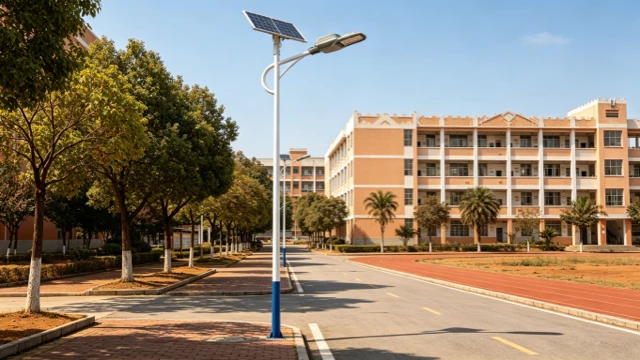

Our projects have been implemented across a wide range of application scenarios.
Why Engineers & Contractors Choose Luyi Solar Street Light
Technical Specifications
Luyi Engineered Solar Street Lights
Basic Information

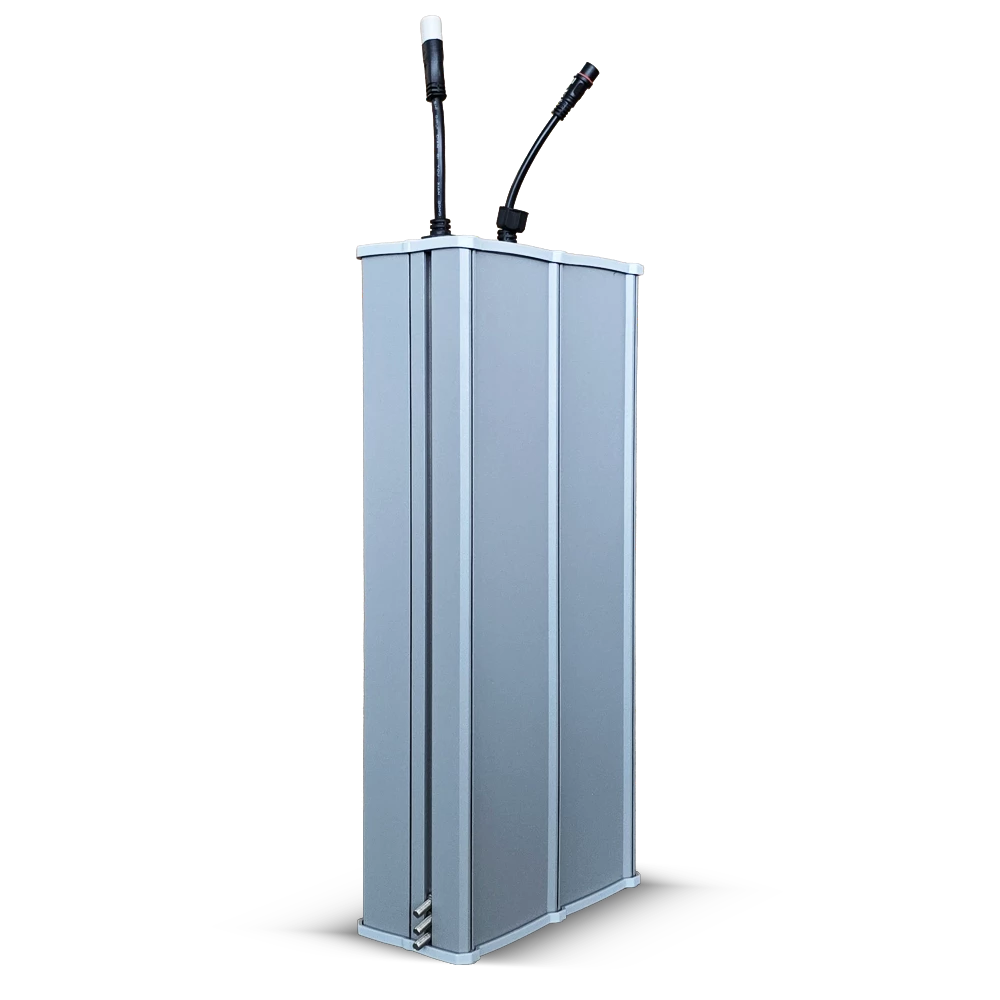

Solar & Battery
Control & Working Mode
Material & Protection
Packaging & Installation
Luyi 50W / 60W / 80W / 100W
| Model | Luyi 50W | Luyi 60W | Luyi 80W | Luyi 100W |
|---|---|---|---|---|
| Power | 20W | 25W | 30W | 40W |

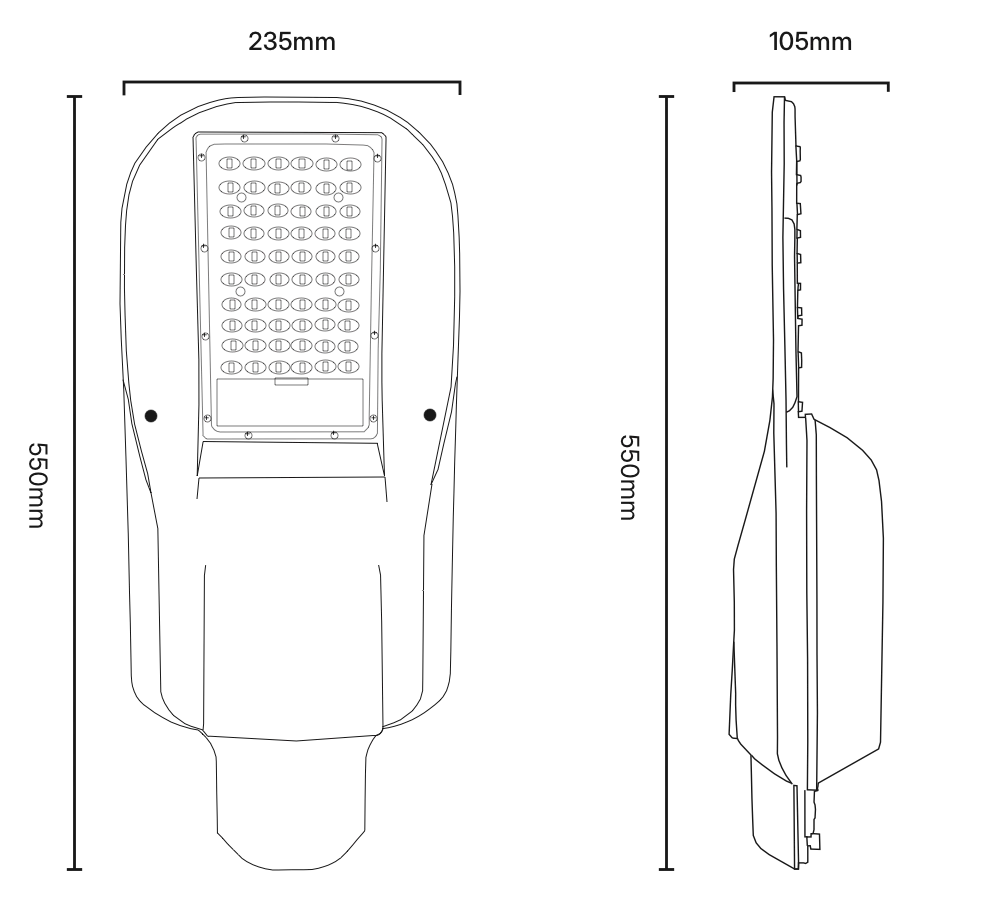

| Lamp Body | 550 × 235 × 105mm | 550 × 235 × 105mm | 550 × 235 × 105mm | 550 × 235 × 105mm |
| Luminous Flux | 8000 lm | 9000 lm | 11000 lm | 13500 lm |
| LED Chips | 60 pcs 5054 SMD LED Chips | 60 pcs 5054 SMD LED Chips | 60 pcs 5054 SMD LED Chips | 100 pcs 5054 SMD LED Chips |
| Solar Panel | 5V 50W (500 × 580mm) | 5V 60W (580 × 610mm) | 5V 80W (580 × 760mm) | 5V 100W (580 × 930mm) |
| Battery | 3.2V 60Ah LiFePO₄ | 3.2V 80Ah LiFePO₄ | 3.2V 100Ah LiFePO₄ | 3.2V 120Ah LiFePO₄ |
| Charging Time | 5–6 hrs | 5–6 hrs | 5–6 hrs | 5–6 hrs |
| Backup Time | 2–3 rainy days | 2–3 rainy days | 3 rainy days | 3–5 rainy days |
| Control Mode | Light-activated, Time-controlled (optional) | Light-activated, Time-controlled (optional) | Light-activated, Time-controlled (optional) | Light-activated, Time-controlled (optional) |
| Waterproof Grade | IP65 | IP65 | IP65 | IP65 |
| Material | Die-cast Aluminum + PC Lens | Die-cast Aluminum + PC Lens | Die-cast Aluminum + PC Lens | Die-cast Aluminum + PC Lens |
| Recommended Pole Height | 5–6 m | 6–7 m | 7–8 m | 8–10 m |
| Application | Urban roads, rural roads, parks, and Industrial parks | Urban roads, rural roads, parks, and Industrial parks | Urban roads, rural roads, parks, and Industrial parks | Highways / wide roads |

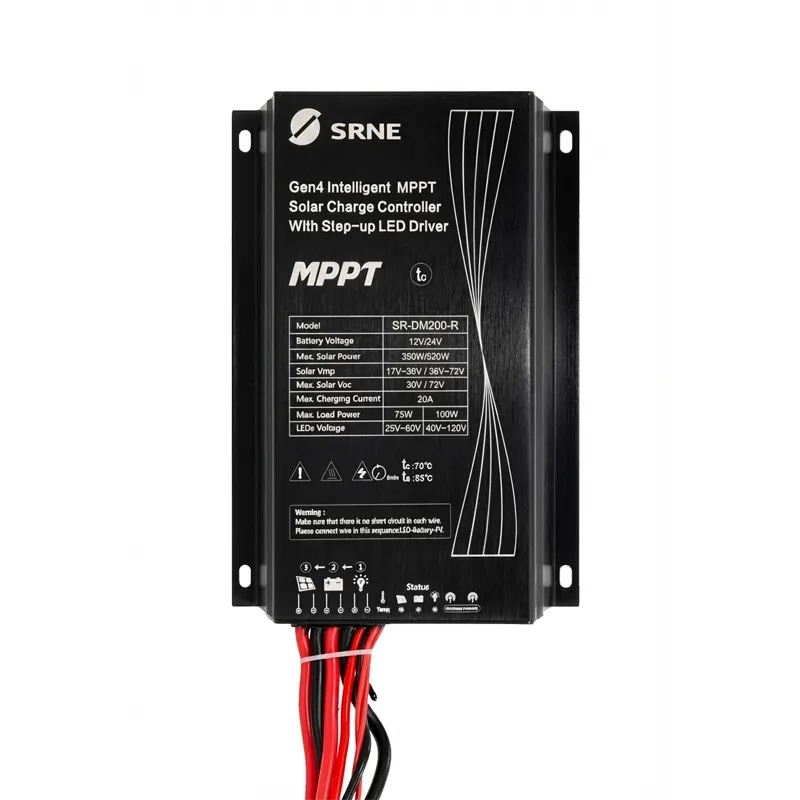

Smart MPPT Solar Lighting Controller Systems
The MPPT intelligent control system is one of the core technologies of the Luyi solar street lighting system. It dynamically adjusts charging and discharging strategies according to environmental conditions and battery status.
Main advantages include:
This smart management technology helps maximize lighting performance while reducing long-term maintenance costs for large-scale infrastructure projects.

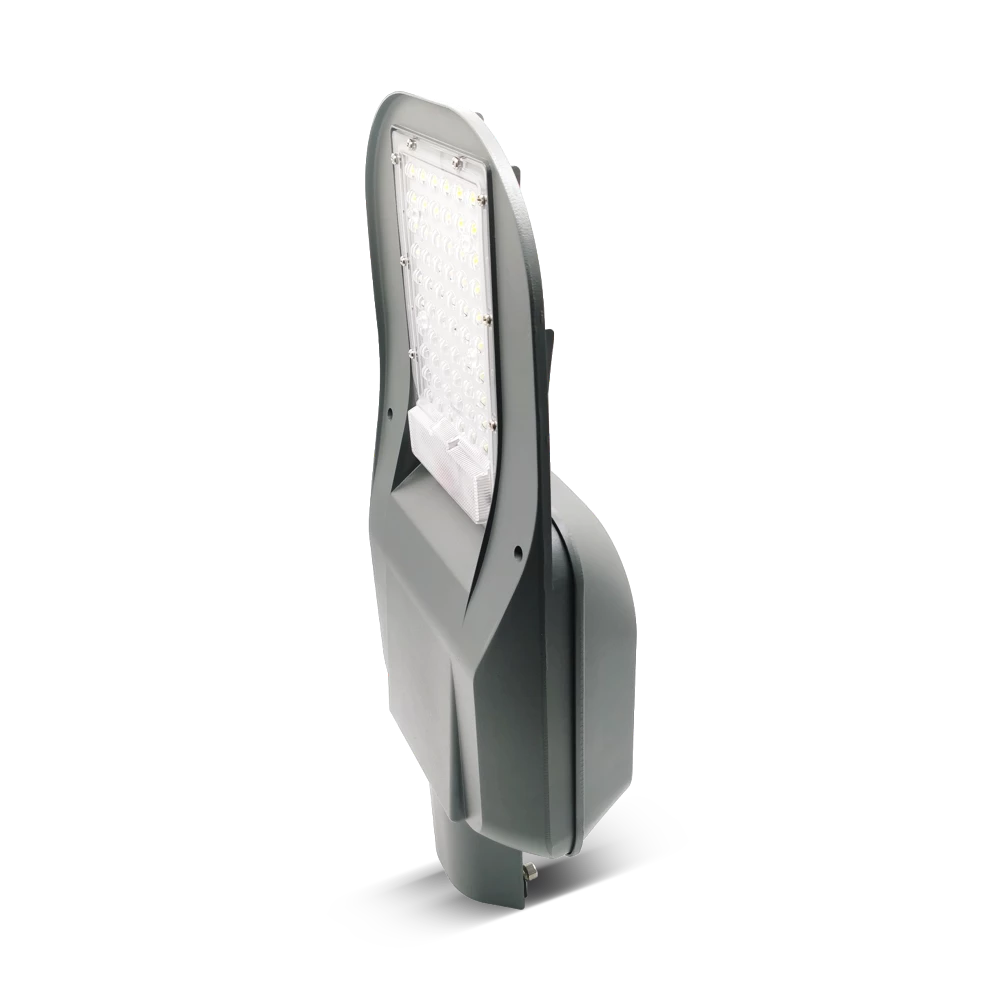

High Brightness LED Optical Design
The Luyi solar street light uses professional roadway optical lenses to improve illumination uniformity and road coverage.
Optical Features:
The optical system is suitable for highways, municipal roads, industrial zones, and public infrastructure lighting projects.

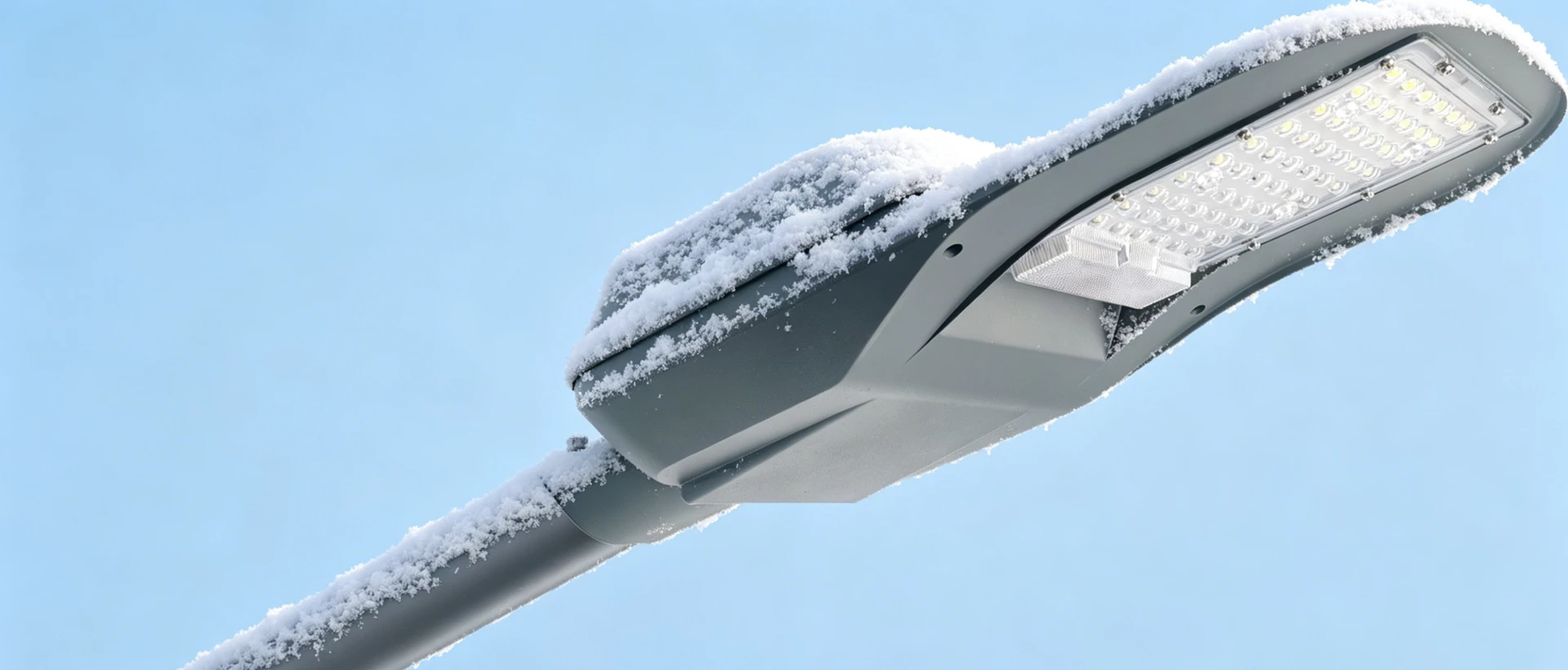

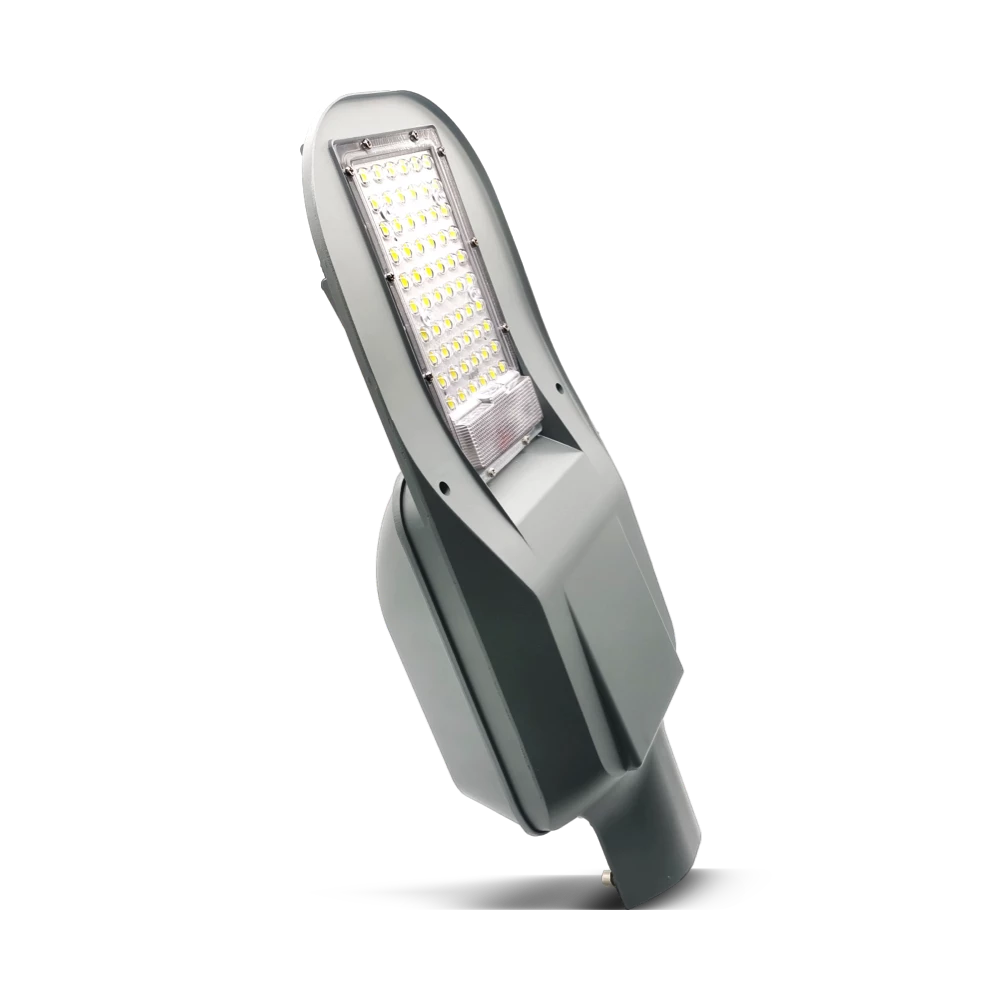

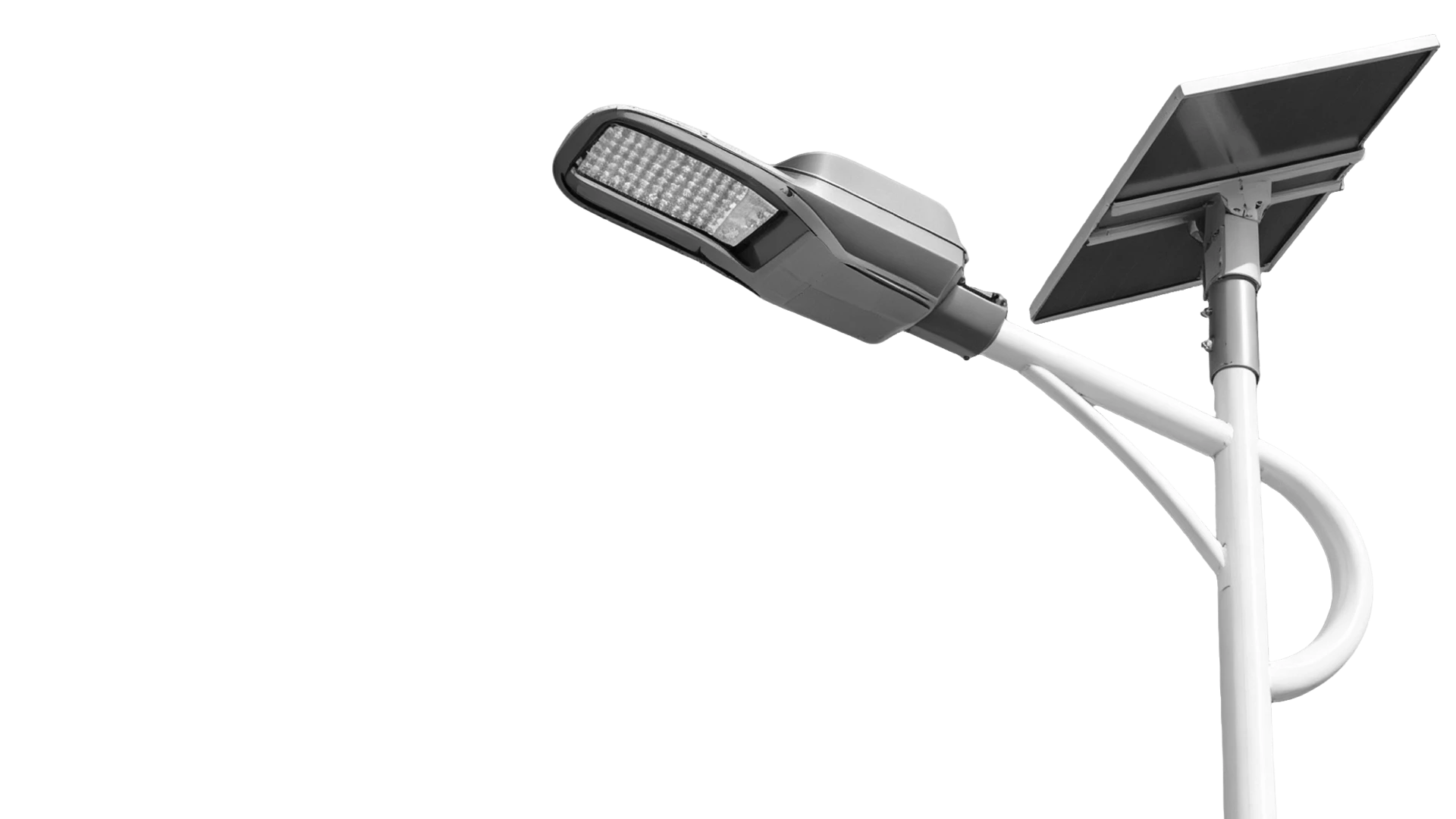

Durable Outdoor Structure Design

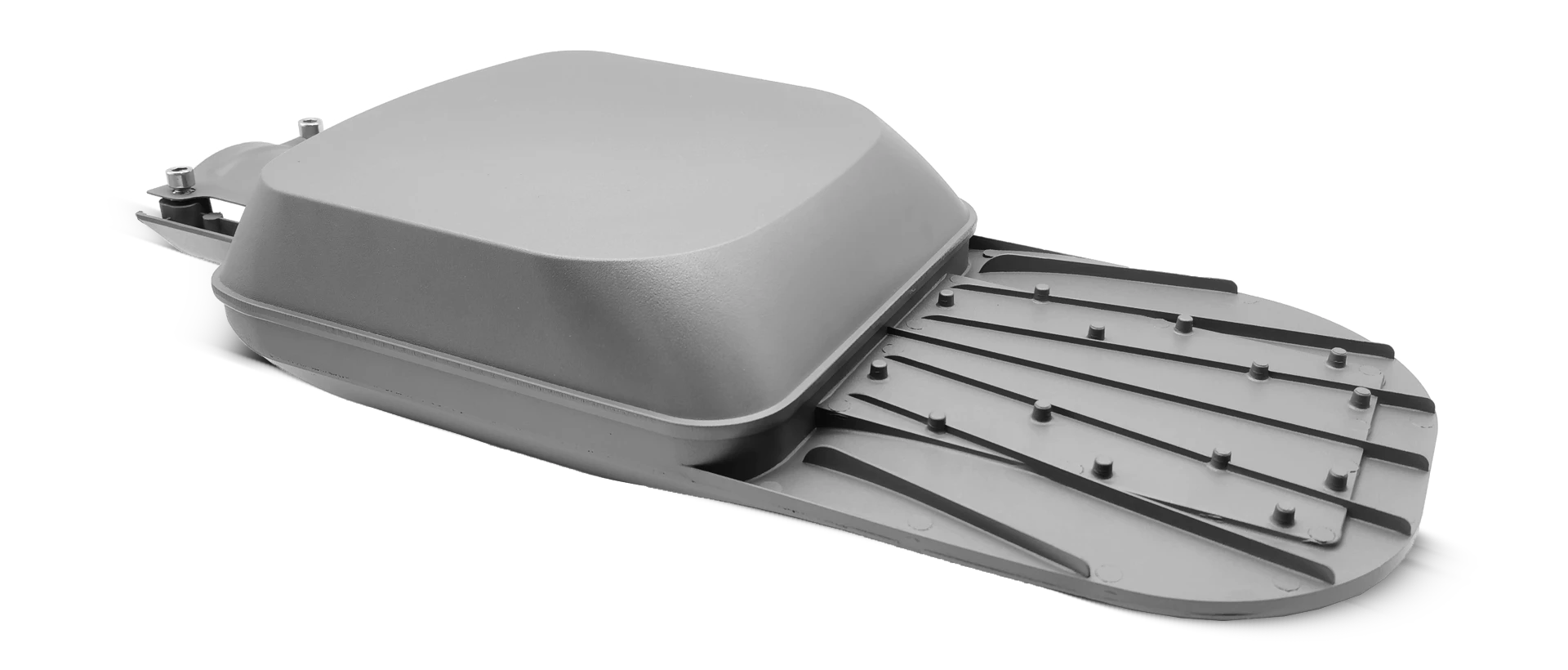

The lamp body is manufactured using high-strength die-cast aluminum with excellent heat dissipation performance and corrosion resistance.
OEM & ODM Solar Street Light Services
Queneng provides flexible OEM and ODM manufacturing services for distributors, engineering contractors, government tenders, and lighting brands.
Our workflow adapts to your specific goals, ensuring each product perfectly matches your brand identity and market demand.
Customization Services
Solar Street Light Manufacturing & Quality Control
Every Luyi solar street light undergoes strict quality testing before shipment.
Our factory follows strict quality management standards to ensure reliable product performance for global infrastructure projects.
Related Solar Lighting Certifications
The Luyi solar street lighting system can support international project requirements and export standards.

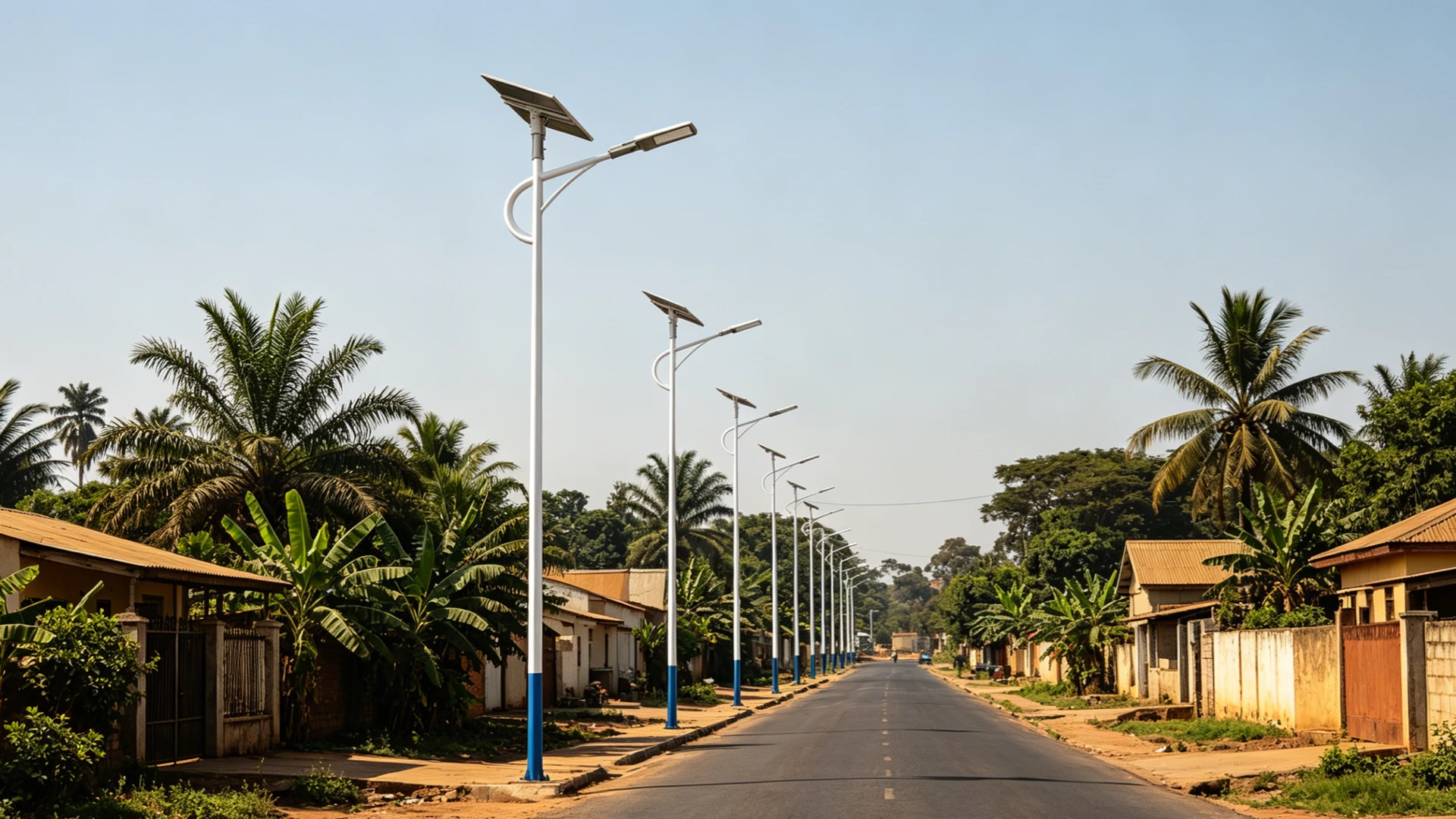

View More Projects of This Product in African Countries
Packaging & International Shipping
Professional, eco-friendly export packaging ensures the safety of international solar streetlight projects during transit.
Luyi Solar Street Light Installation Process Guidance
The Luyi solar street light features an integrated design that significantly simplifies the installation process. Without complicated underground wiring or external power connections, the system can be installed quickly and efficiently for municipal roads, highways, industrial parks, parking lots, rural roads, and public infrastructure projects.
Step 1: Prepare the Installation Site
Before installation, confirm the project layout and ensure the selected location receives sufficient sunlight exposure throughout the day.
Installation Recommendations:
Recommended Pole Height:
| Power | Pole Height |
| 50W | 5-6 meters |
| 60W | 6-7 meters |
| 80W | 7-8 meters |
| 100W | 8-10 meters |
Step 2: Install the Light Pole
Secure the light pole onto the concrete foundation using anchor bolts.
Pole Installation Requirements:

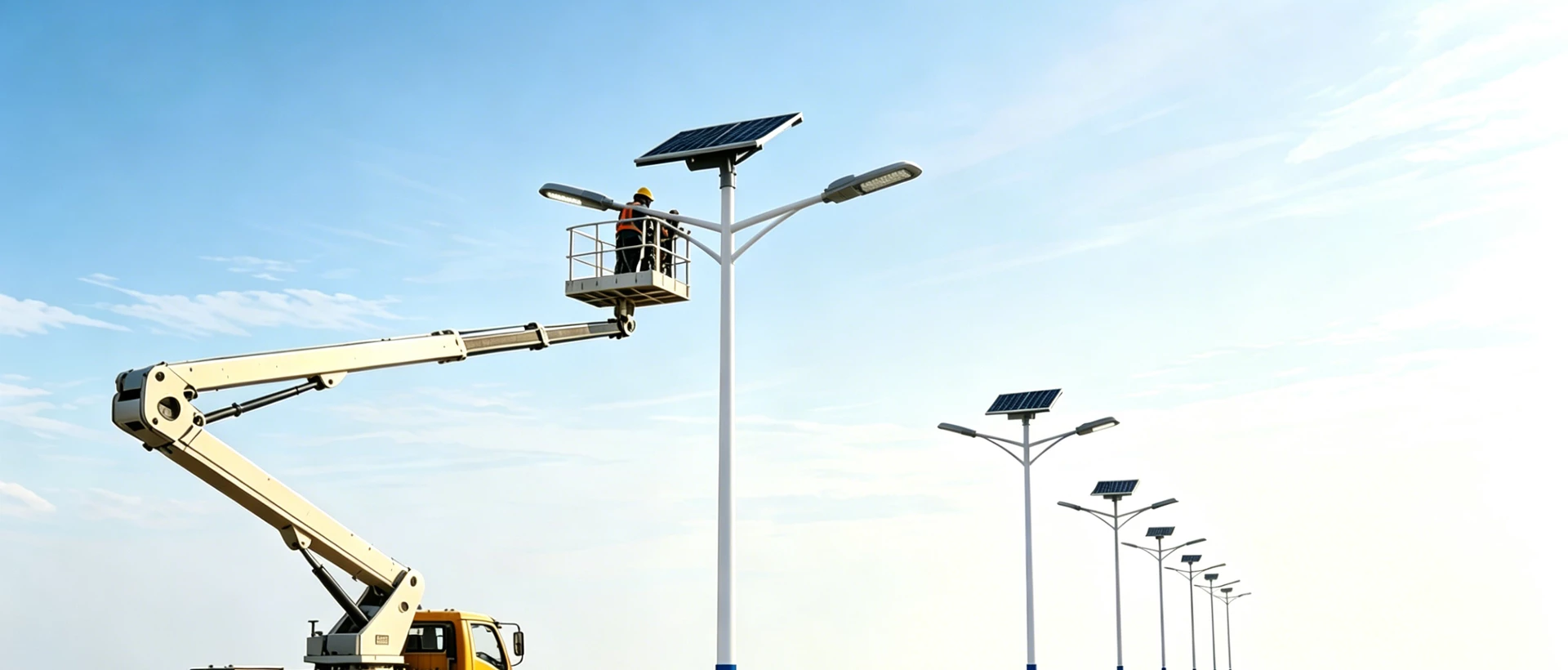

Step 3: Mount the Solar Street Light
Lift the solar street light onto the pole arm and securely fasten the mounting bracket.
Installation Notes:
Step 4: Connect the Internal System
The Luyi solar street light comes with a pre-configured internal control system, reducing complicated wiring procedures.
System Inspection:
Step 5: Test the Lighting System
After installation, perform a complete system test to ensure normal operation.
Testing Checklist:
Step 6: Final Inspection
Adjust the lighting angle and confirm illumination coverage according to the project requirements.
Final Inspection Items:
Frequently Asked Questions
Luyi Solar Street Light
What type of solar panel is used in the Luyi solar street light?

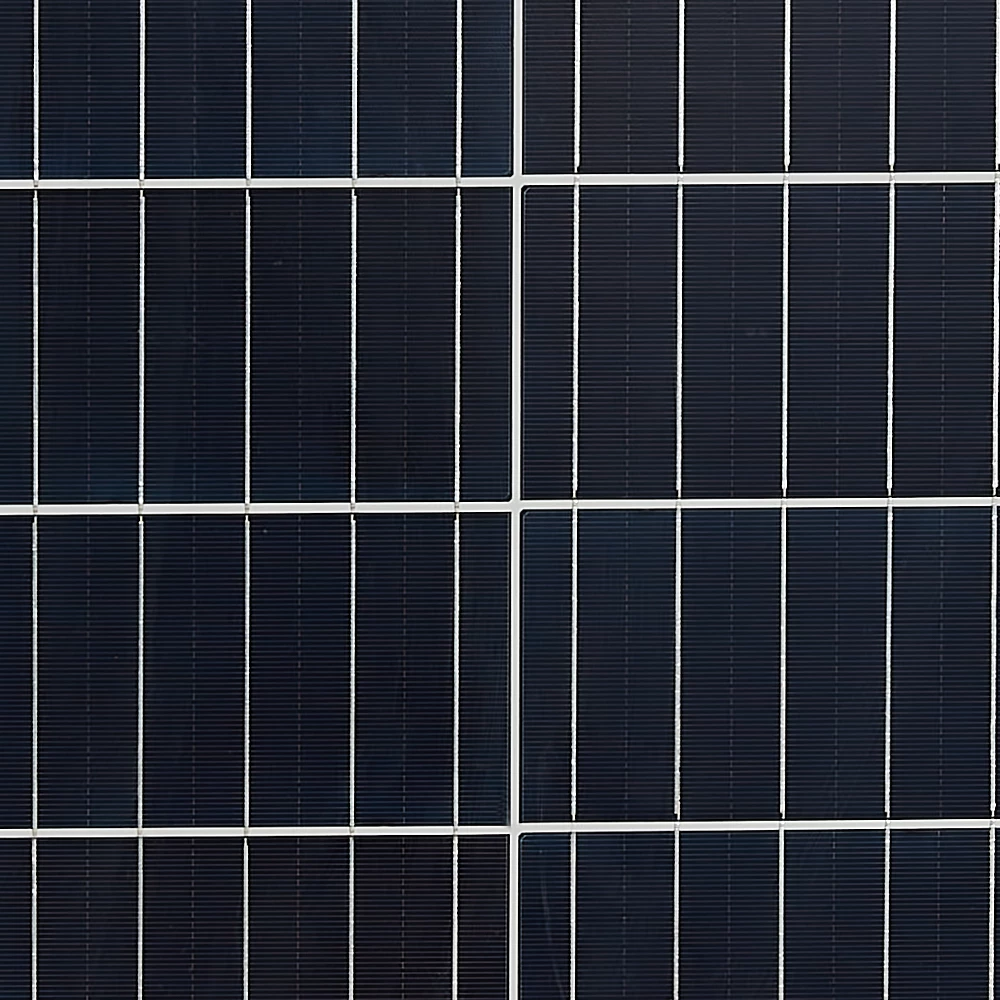

The Luyi series uses high-efficiency monocrystalline solar panels that provide faster charging efficiency and more stable power generation compared to conventional solar panels.
Does the solar street light turn on automatically at night?
Yes. The integrated intelligent controller supports automatic dusk-to-dawn operation, allowing the light to automatically turn on at sunset and turn off at sunrise.
Is the Luyi solar street light suitable for coastal environments?
Yes. The housing is designed with corrosion-resistant materials and waterproof protection, making it suitable for humid, rainy, and coastal environments.
Can the solar street light work during cloudy or rainy weather?
Yes. The intelligent energy management system stores power efficiently during sunny periods to maintain stable operation during cloudy and rainy days.
What materials are used for the lamp housing?
The housing is manufactured from high-strength die-cast aluminum, providing excellent heat dissipation, corrosion resistance, and outdoor durability.
Is the Luyi solar street light suitable for large infrastructure projects?
Yes. The product is widely used for municipal roads, highways, industrial parks, public infrastructure, and commercial outdoor lighting projects worldwide.
Can the lighting angle be adjusted during installation?
Yes. The mounting bracket allows flexible angle adjustment to optimize road illumination coverage based on project requirements.
Does the product require external electrical wiring?
No. The all-in-one integrated design combines the solar panel, battery, controller, and LED lighting system into one unit, eliminating complicated external wiring.
Can different wattage configurations be selected for different roads?
Yes. Different power configurations such as 50W, 60W, 80W, and 100W are available to match various road widths and lighting standards.
How does the Luyi solar street light help reduce operational costs?
The system operates entirely on solar energy, eliminating electricity expenses while reducing maintenance and infrastructure costs associated with traditional street lighting systems.
Request a Solar Street Light Quotation
Submit your project details and receive a customized lighting solution, including product selection, technical parameters, installation suggestions, and cost estimation. Our engineers will assist you from planning to implementation to ensure long-term performance and reliability.
Choose the right solar street lights for your project today.
QN-YY is a compact all-in-one solar street light solution developed by Queneng for decentralized outdoor lighting applications.
Combining a high-efficiency solar panel, LED lighting module, LiFePO₄ battery, and intelligent controller into one integrated unit, QN-YY simplifies installation while providing reliable illumination performance for residential roads, rural communities, pathways, and small infrastructure projects.
The QN-YY is available with multiple configurations, including QN-YY130, QN-YY140, QN-YY160, QN-YY180, and QN-YY1110, allowing project developers to select suitable power options according to road width, installation height, and lighting requirements.
